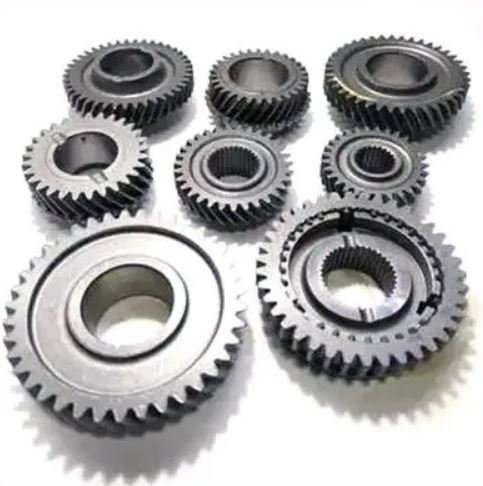

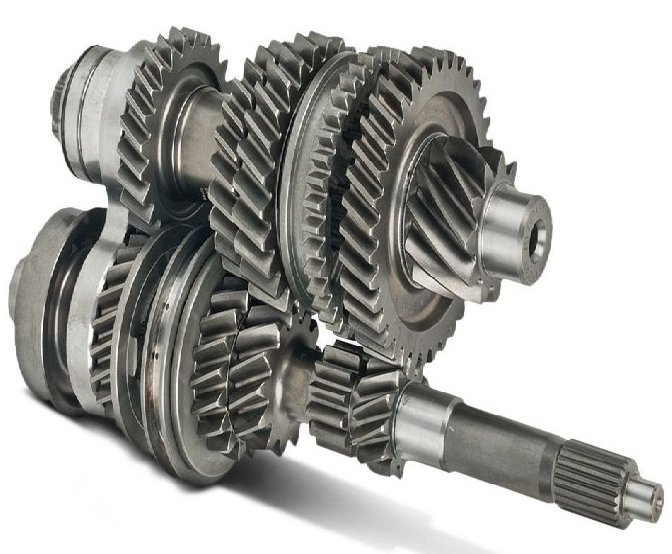

Transmission Main Shaft Helical Gear
Precision forged 20MnCr5 alloy steel main shaft gear with CNC ground tooth profiles.
Factory Specifications
Detailed Technical & Metallurgical Documentation
Heavy Duty Automotive Transmission Main Shaft Gear
Manufactured by Pee Six Gears (Jagdish Automobiles) using certified 20MnCr5 alloy steel with precision sealed atmosphere gas carburizing to achieve surface hardness of 58-62 HRC.
#### Key Engineering Highlights
- Metallurgy: Case-hardening forged alloy steel (20MnCr5 / SAE 8620)
- Tooth Profile: CNC Hobbed and shaved tooth profile for whisper-quiet engagement
- Core Toughness: High impact resistant core (32-38 HRC) preventing tooth shear
- Warranty: Full 100% Replacement Guarantee against manufacturing flaws
- Vehicle Compatibility: Tata Ace, Tata 407, Tata Sumo, Mahindra Bolero, Scorpio, Maxximo, Maruti Omni, 800, Gypsy
| Technical Parameter | Specification |
|---|---|
| Steel Grade | 20MnCr5 / DIN 1.7147 |
| Case Hardness | 58 - 62 HRC |
| Effective Case Depth | 0.8 mm - 1.2 mm |
| Tolerance Grade | DIN 3962 Class 6 |
| Application | Light & Medium Commercial Vehicles |
