Flywheel ring
Induction Hardened Flywheel Starter Ring Gear
High-carbon EN8D forged steel ring gear with high frequency induction hardened teeth.
Factory Specifications
Material
Forged EN8D High Carbon Steel
Hardness
52 - 56 HRC Induction Hardened
Engagement Type
CNC Chamfered Starter Tooth Profile
Compatibility
Tata, Mahindra, Maruti, Hyundai commercial fleets
Warranty
100% Replacement Guarantee
Detailed Technical & Metallurgical Documentation
Precision Flywheel Starter Ring Gear
Engineered by Pee Six Gears for clean starter pinion engagement and reliable engine cranking in all weather conditions.
#### Engineering Highlights
- High Frequency Induction Hardening: Teeth hardened to 52-56 HRC while preserving a ductile, resilient inner core
- Thermal Shrink Fit: Precision bored for seamless shrink installation onto automotive engine flywheels
- Zero Tooth Chipping: Beveled lead-in tooth edges for instantaneous starter pinion meshing
- Applications: Tata Motors, Mahindra & Mahindra, Maruti Suzuki, Hyundai commercial vehicles
| Technical Parameter | Specification |
|---|---|
| Steel Grade | EN8D / Medium Carbon Forged Alloy |
| Tooth Hardness | 52 - 56 HRC |
| Inner Ring Ductility | 24 - 28 HRC (Shatter-Proof) |
| Chamfering | CNC Chamfered Lead-in Profile |
| Warranty | 100% Replacement Guarantee |
Related Flywheel ring Components
Flywheel ring

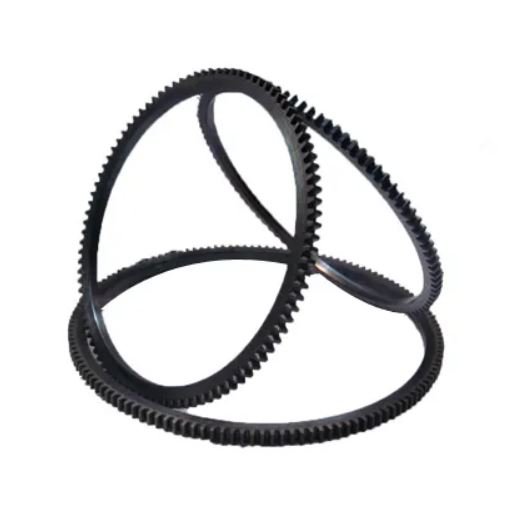

Heavy Commercial Flywheel Starter Ring Gear
