Steering Rack And Box Assy
Precision Steering Rack and Pinion Assembly
Complete manual and power steering rack assembly with induction hardened rack teeth.
Factory Specifications
Material
40Cr Alloy Steel Rack & Pinion
Hardness
55 - 60 HRC Rack Teeth
Application
Manual & Power Steering Gearboxes
Compatibility
Maruti Omni, 800, Swift, Tata Ace, Leyland Dost
Warranty
100% Direct Replacement Guarantee
Detailed Technical & Metallurgical Documentation
Complete Automotive Steering Rack Assembly
Manufactured by Pee Six Gears to deliver crisp directional control, zero center dead-zone, and long service life.
#### Features & Construction

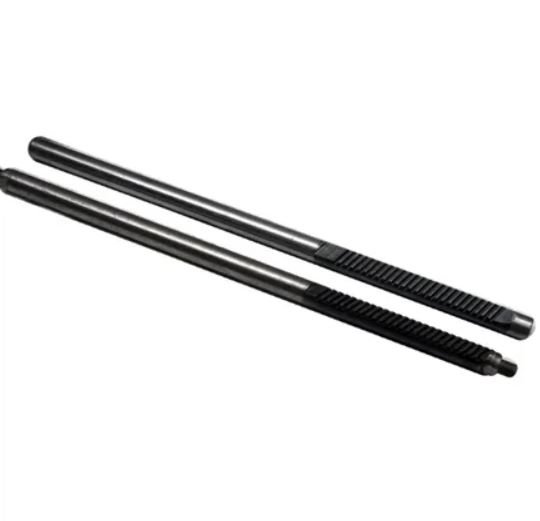

- Induction Hardened Rack Bar: High carbon alloy rack bar induction hardened to prevent tooth pitting

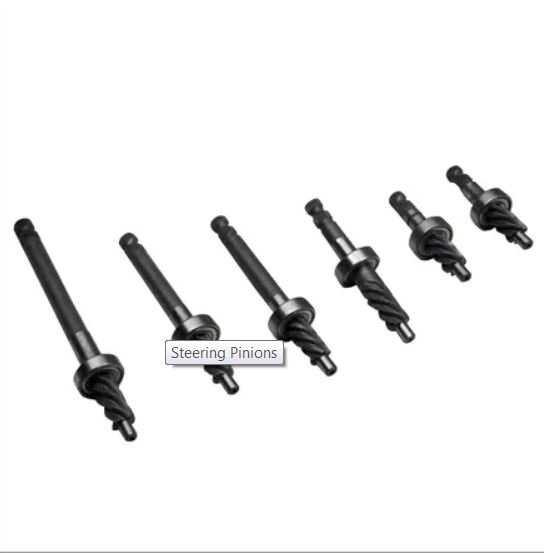

- Helical Steering Pinion: Precision ground pinion gear ensuring smooth, effortless wheel turning
- Vehicle Compatibility: Maruti Suzuki Omni, 800, Alto, Swift, Tata Ace, Tata Magic, Leyland Dost
| Technical Parameter | Specification |
|---|---|
| Steering Type | Manual & Hydraulic Power Steering |
| Rack Bar Steel | 40Cr Forged Alloy Steel |
| Pinion Tooth Type | Helical Ground Mesh |
| Warranty | 100% Replacement Guarantee |
