Ignition coil

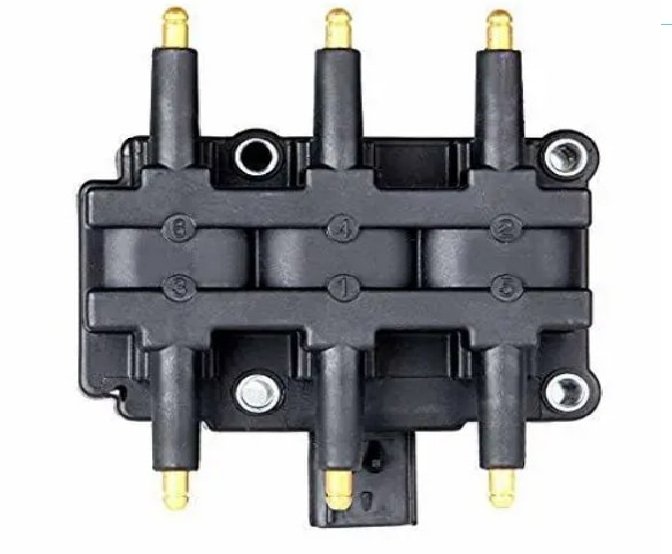

High Energy Electronic Automotive Ignition Coil
High voltage electronic ignition coil delivering strong spark energy for quick ignition and optimal fuel burn.
Factory Specifications
Output Voltage
35,000+ Volts High Spark Energy
Winding Material
Grade 1 Electrolytic Copper
Encapsulation
High Dielectric Epoxy Resin
Compatibility
Maruti MPFI, WagonR, Swift, Tata, Hyundai
Warranty
100% Direct Replacement Guarantee
Detailed Technical & Metallurgical Documentation
High Energy Automotive Ignition Coil
Manufactured by Pee Six Gears to deliver high secondary voltage for modern multipoint fuel injected and commercial gasoline/CNG engines.
#### Key Features & Performance
- Primary & Secondary Windings: High-conductivity copper windings insulated with vacuum-impregnated epoxy resin
- Fast Rise Time: Quick voltage buildup producing fat, hot sparks across all RPM ranges
- Thermal & Vibration Resistance: Epoxy encapsulated coil pack resistant to engine bay vibration and thermal fatigue
- Compatibility: Maruti 800, Omni MPFI, Zen, Esteem, WagonR, Swift, Tata, Hyundai
| Technical Parameter | Specification |
|---|---|
| Output Voltage | 35,000+ Volts |
| Primary Resistance | 0.6 - 1.2 Ohms |
| Secondary Resistance | 9.5 - 14.5 kOhms |
| Insulation | Vacuum-Potted High Dielectric Epoxy |
| Warranty | 100% Replacement Guarantee |
